Noby-21
ISO9001:2008 Approved by EAQA

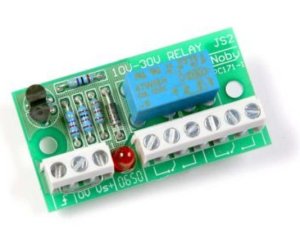

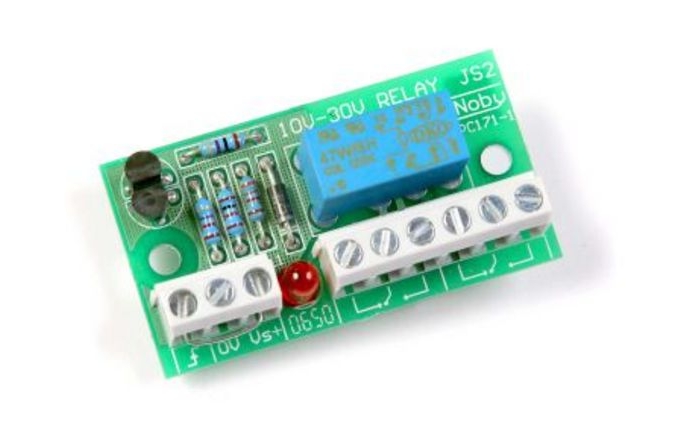

Noby-21 Relay-1 (Click to enlarge)

Overview

    Features

  • 10 - 30V supply operating range
  • single DPDT DC relay
  • contacts rated up to 2 Amp at 28 Volt DC
  • transistor driven
  • operating status LED
  • coil suppressor diode

The Noby-21 Relay Module is designed for use in both 12v and 24v alarm systems. The DPDT voltage-free contacts permit switching of two independent circuits. Bridging the two contact sets together creates an effective single contact with a switching capacity of up to 4 amps. An on-board LED displays the activation state of the relay. Two adhesive mounting pillars are supplied with the Noby-21.

Typical applications include:

  • switching high currents directly from the battery (via an in-line fuse).
  • signal isolation between various parts of a system operating at different voltage supplies.

[Back to Top]

Technical Specifications

Power Supply Unit

Value

Unit

Comments

Absolute Maximum Supply Voltage

30

volts DC



Supply Voltage Range

10 - 30

volts DC



Operating Current:
Vs = 12v
Vs = 24v


15
18

mA



Standby Current

0

mA



Connections

Value

Unit

Comments

Relay Type

DPDT



Double Pole Double Throw

Contact Power Rating

60

VA



Contact Current Rating

2.0

Amps

 at 28 Volts DC

Maximum Contact Current

2.0

Amps



Isolation Voltage:
coil to contacts
contacts to contacts

1000

VAC



Insulation Resistance
coil to contacts
contacts to contacts

>1000

Mohm



Signal Input Resistance

4.7

kohm



Signal Input Operating Threshold

>4.0

V



Operating Status LED

Yes





Coil Supressor Diode Fitted

Yes





PCB

Value

Unit

Comments

Dimensions (width x depth):

55 x 30

mm



Shipping Weight

24

g
