Noby-28
ISO9001:2008 Approved by EAQA

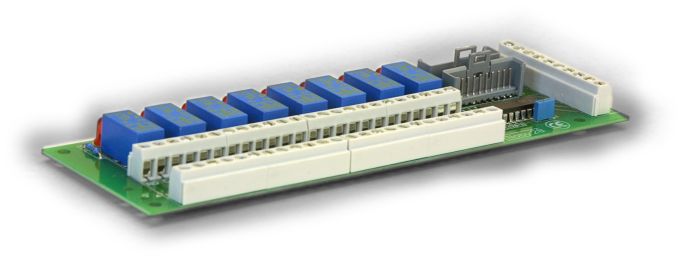

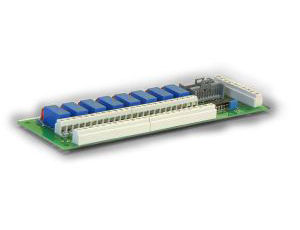

Noby-28 Relay-8 (Click to enlarge)

Overview

    Features

  • eight independent 12 Volts DC relays
  • two changeover contacts per relay
  • contacts rated at 2 Amps at 30 Volts DC
  • individual relay status LED
  • 10-Way header through connection
  • Darlington driver inputs

The Noby-28 Relay-8 Module offers eight individually operated relays for all your switching application needs.

Each relay has two changeover contacts rated to an absolute maximum of 2 Amps at 30 Volts DC with an LED to indicate relay operating status.

The Noby-28 accepts positive 12 Volts DC input signals which can be from low current sources, down as low as 10mA.

[Back to Top]

Technical Specifications

Power Supply Unit

Value

Unit

Comments

Supply Voltage

12

volts DC



Connections

Value

Unit

Comments

No. of relays

No. of contacts per relay

Contact rating

8

2

2





amps

at 30 volts DC

Inputs:
Voltage
Resistance


4
10.5


volts DC
KOhms



PCB

Value

Unit

Comments

Dimensions (width x depth):

185 x 60

mm



Shipping Weight

200

g



LED Indications

LED Status

Fault Identification

Red LED

off
steady on

Relay off
Relay on
