Noby 90 Communicator
ISO9001:2008 Approved by EAQA

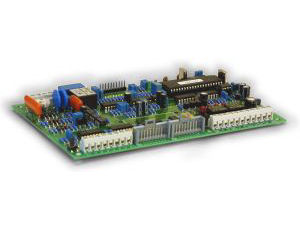

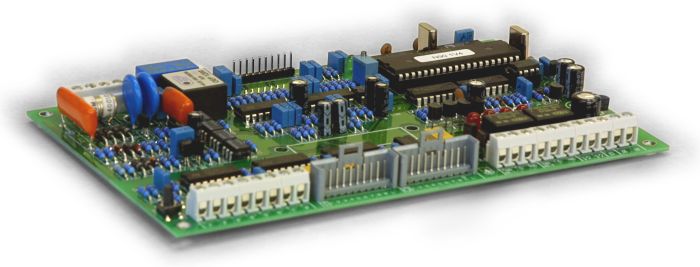

Noby-90 Communicator (Click to enlarge)

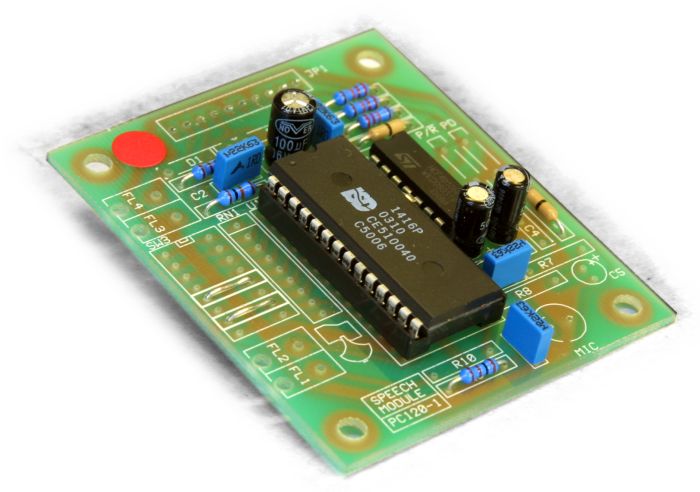

Noby-90T1 Speech Module (Click to enlarge)

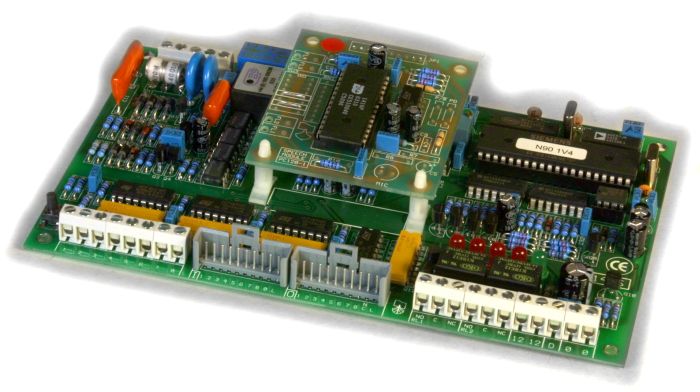

Noby-90 Comm with Speech Module fitted (Click to enlarge)

Overview

    Features

  • 8-channel with individual programmable trigger polarity
  • 8 outputs
  • 2-way communication
  • fast / slow format compatible
  • private caller group signalling
  • speech messaging facility
  • remote setup and programming from handset
  • line fault monitoring
  • built-in line surge protection

PLEASE NOTE THAT THIS PRODUCT HAS BEEN DISCONTINUED.

The Noby-90 Communicator is an 8-channel communication device with a host of features that make it suitable for even the most demanding user’s requirements.

The eight inputs can have their trigger polarity individually programmed for voltage applied and voltage removed, in both directions.

The eight outputs offer a variety of connection options, and in addition these outputs can be individually switched on and off remotely.

The Noby-90 Communicator is easily setup and programmed via a telephone handset. Connect the device to a telephone line and simply dial that number and enter the secure user code. This offers authorised users full control of the device from a remote location.

Private caller group signalling allows the Noby-90 Communicator to dial around up to 5 different telephone numbers to alert users to a problem with the connected system. The first user to acknowledge the alert cancels the dialling around.

The Noby-90 Communicator also offers a speech messaging facility when using the Noby-90 Speech Module. Users can enter personalised messages that will be repeated depending on the alert when using private caller group signalling. This allows a more user friendly message to be understood by the person receiving the alert call.

[Back to Top]

Technical Specifications

Power Supply Unit

Value

Unit

Comments

Supply Voltage

12

volts DC

typically 10-16V

Connections

Value

Unit

Comments

Inputs:
Low
High
Absolute max.


<0.3 x Vsupply
>0.7 x Vsupply
30


volts DC
volts DC
volts DC



Outputs:
Cmos Output


10


mA


per port

No. of relays

No. of contacts per relay

Contact rating

2

1

3





amps





at 30 volts DC

LED Outputs

2



to LED anode

Cabinet (optional)

Value

Unit

Comments

Dimensions (width x height x depth)

230 x 195 x 55

mm

1.2mm powder coated steel

Shipping Weight

1.75

kg



[Back to Top]
