T16 Digicorder
ISO9001:2008 Approved by EAQA

Overview

    Features

  • 16 channel message recording / playback system
  • 16 User Messages
  • 16 pre-programmed Default Factory Messages
  • 16 hardware trigger inputs
  • trigger input memory & priority system
  • repeat options - repeat once or repeat whilst trigger input active
  • 120 secs recording time,  3.4kHz audio bandwidth.
  • on board 2W amplifier
  • audio relay – can be wired into pre-existing loudspeaker circuit.
  • audio recording: 3.5mm sockets for line level signal (computer sound card) or low cost electret microphone.
  • operates from 12v DC power supply (10v – 16v)

PLEASE NOTE THAT THIS PRODUCT HAS BEEN DISCONTINUED.

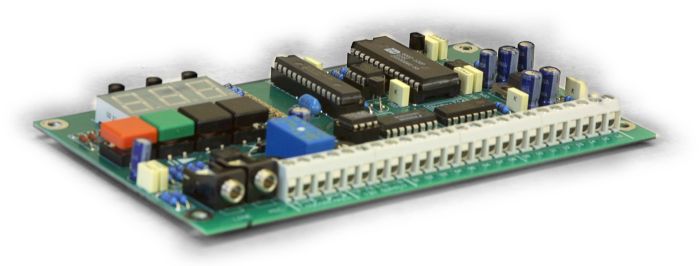

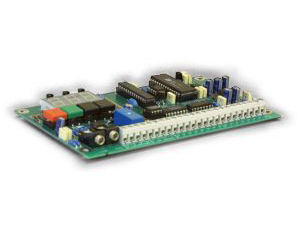

The Noby T16 Digicorder is a 16-channel message record / playback system suitable for a variety of applications from simple lift floor announcements to customised alert messages driven by an intruder or fire alarm control panel (for example, warning of the area of fire or asking people to move to their nearest exit).

The Noby T16 can be factory programmed with up to 16 default recorded messages. These messages can be overwritten by subsequent user messages without actually erasing the default message, allowing the Digicorder to be adapted as your message needs change but with the default message always available when the user message is deleted.

All messages are prioritised with Channel 1 having the highest priority. The highest priority triggered message takes precedence but all lower priority messages remain in a queue until an opportunity for playback.

Audio recording of user messages is achieved either via a computer sound card or with direct connection of a condenser microphone. The line level can be optimised before recording using the onboard level adjust together aided by a line level display.

In addition, the Noby T16 Digicorder can be used to drive a small loudspeaker but may also be wired into an existing loudspeaker system.

[Back to Top]

Technical Specifications

Power Supply Unit

Value

Unit

Comments

Supply Voltage

12

volts DC

typically 10-16V

Connections

Value

Unit

Comments

Message Trigger Inputs
Low Trigger
High Trigger
Absolute max.

16
<0.3 x Vsupply
>0.7 x Vsupply
30


volts DC
volts DC
volts DC



Outputs:
Loudspeaker Amplifier
Audio Bandwidth


2
3.4


W
kHz



Recording:
Audio Input
Record Time
Audio Bandwidth


200
120
3.4


mV
seconds
kHz


typical line level
total
