Noby 420
ISO9001:2008 Approved by Afnor UK

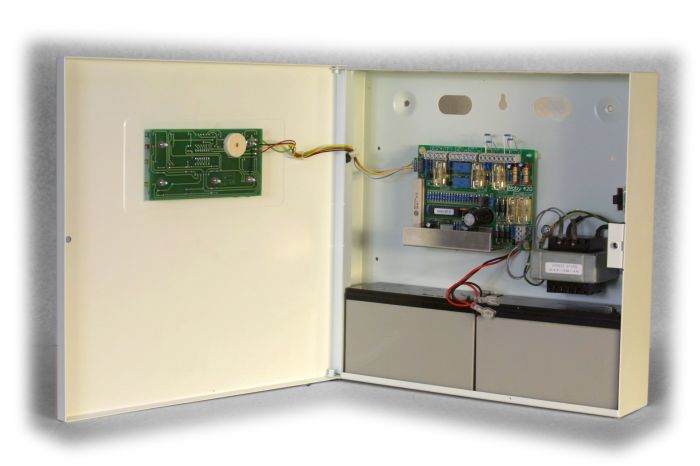

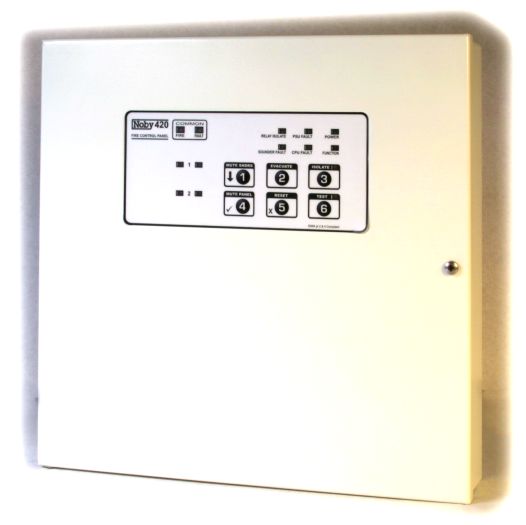

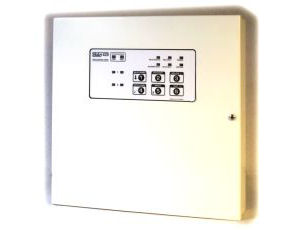

Noby-420 Closed (Click to enlarge) Noby-420 Open (Click to enlarge)

    Features

  • EN54 Pt 2 & 4 compliant
  • 2 monitored zone circuits
  • 2 monitored sounder circuits
  • head removal monitoring
  • class change
  • non-latch zone option
  • zone isolate
  • relay isolate
  • one-man test
  • 15 event log memory
  • 1A PSU
  • battery monitoring
  • fault signal input & output
  • attractive steel cabinet
  • reliable build quality
  • 2 year warranty

Overview

PLEASE NOTE THAT THIS PRODUCT HAS BEEN DISCONTINUED.

The Noby-420 2-Zone Fire Panel has been designed to allow for an easier, yet more professional installation, while providing features that make the panel ideal for most installations.

The main control unit comes in an attractive metal cabinet with ample entries and connection space, while wiring is simplified by the provision of a sounder circuit for every zone. Built-in head removal monitoring, optional non latch zones, class change input and 24V auxiliary supply make the system as versatile as it is reliable.

Engineers have access to an 15 event fire memory which provides information on the most recent fire events. Engineers are further assisted by individual sounder circuit fault identification and sounder circuit isolation.

For full product information and manuals (pdf format) on the Noby-420, please go to our downloads section..

[Back to Top]

Technical Specifications

Power Supply Unit

Value

Unit

Comments

Mains Supply Voltage

230 +10% -6%

volts AC



Mains Supply Frequency

50 / 60

Hz



Mains Power Rating

60

VA



Nominal Battery Voltage

24

volts



Regulated PSU charger voltage

27.3

volts



Regulated PSU charger current

  • 20 minute rating
    continuous



1.5
1.0



A
A



Fused Outputs:

F1 Aux 24v
F2 Sounder 1 Circuit
F3 Sounder 2 Circuit
F4 Battery +ve
F5 30VAC Transformer Secondary



1.0
1.0
1.0
3.0
2.0



A
A
A
A
A



F1A 20mm Quick Blow
F1A 20mm Quick Blow
F1A 20mm Quick Blow
T3A 20mm Slow Blow
T2A 20mm Slow Blow

Standby Battery Current:

60

mA

2 zone + 2 sndr EOL resistors fitted

Low Voltage Monitor

21.0

volts



Battery Capacity Monitor

Yes



10s load test every 12hrs

Zone Circuits

Value

Unit

Comments

Detection Zones

2





No. Detectors Per Zone

20



based on 100uA per detector

End Of Line (EOL) Resistor

4700

ohms



Open Circuit Monitoring

R > 10,000

ohms



Short Circuit Monitoring

R < 150

ohms



Fire Alarm Detection

150 < R< 1600

ohms



Head Removal Monitoring

Yes



  • requires schottky diode bases
  • sampled at 60s intervals

Sounder Circuits

Value

Unit

Comments

Sounder Circuits

2





Maximum No. Sounders Per Circuit

50



based on 20mA per sounder

Maximum No. Sounders Total

62



based on 20mA per sounder

End Of Line (EOL) Resistor

4700

ohms



Open Circuit Monitoring

> 10,000

ohms



Short Circuit Monitoring

< 1K

ohms



Fire Alarm DPDT Relay

1.0

A

rated at 1.0A/30Vdc per contact set

Signal Inputs

Value

Unit

Comments

Class Change “CC”

200

kohm

24 volt +ve going signal

Fault Input

200

kohm

24 volt +ve going signal

Signal Output

Value

Unit

Comments

Fault Output

50

mA

24 volt open collector, +ve going

Cabinet

Value

Unit

Comments

Dimensions (width x height x depth):

335 x 325 x 75

mm

1.2mm powder coated steel

Shipping Weight

4.2

kg



[Back to Top]
