Noby 208
ISO9001:2015 Approved by Afnor UK

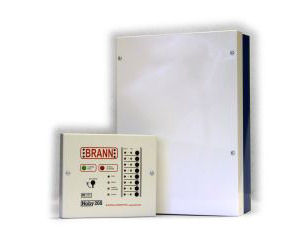

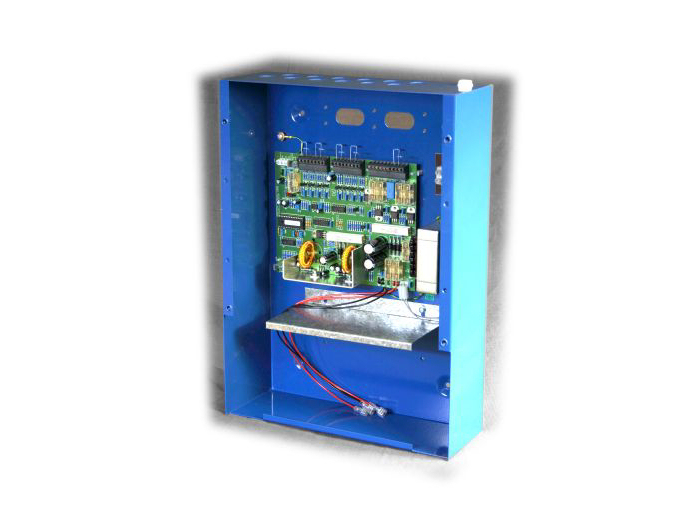

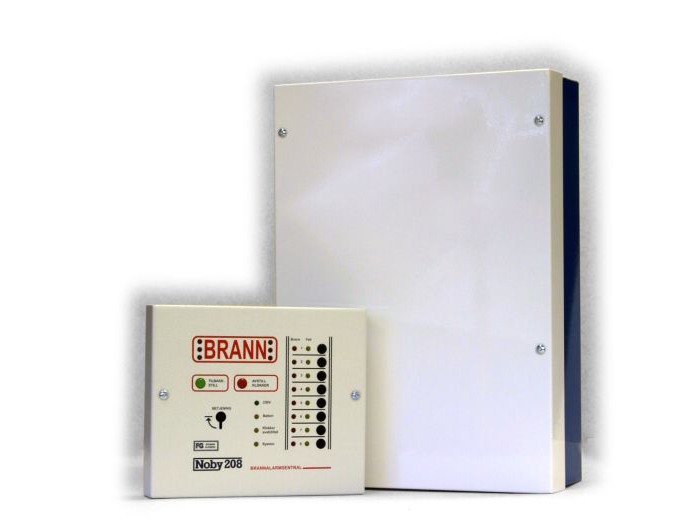

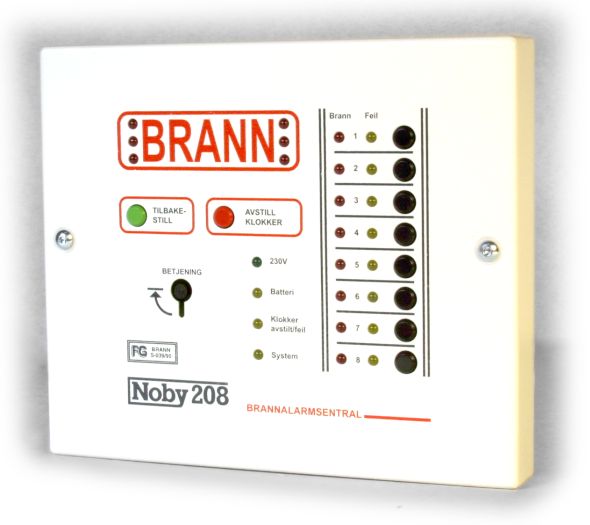

Noby-208 Main and Remote (Click to enlarge) Noby-208 Open (Click to enlarge) Noby-208R Remote Norwegian (Click to enlarge)

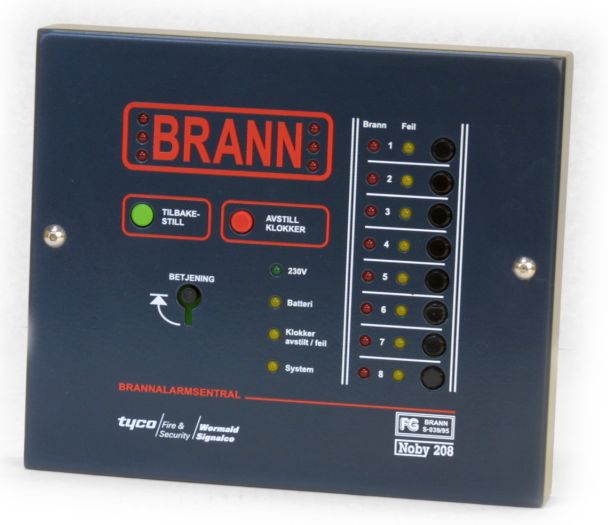

Noby-208R Remote Wormald (Click to enlarge)

Features

Overview

Specification

Overview

    Features

  • Specially designed for the Scandinavian market
  • 8 monitored zone circuits
  • 2 monitored sounder circuit
  • remote keypad
  • zone isolate
  • 2.5A PSU switching regulator
  • battery monitoring
  • Nemko approved
  • attractive steel cabinet
  • reliable build quality

PLEASE NOTE THAT THIS PRODUCT HAS BEEN DISCONTINUED.

The Noby-208 range, specifically designed for the Scandinavian market, has many features that allow for an easier, yet more professional installation.

The main control unit comes in an attractive metal cabinet with ample entries and connection space together with room to accommodate up to four 12V 7Ah batteries.

A 10-way communication port provides zone fire status and fault signalling. This port is suitable for driving the Noby-28 Relay-8 module to perform a variety of switching functions.

The PSU incorporates a high efficiency switching regulator capable of delivering 2.5A at two voltage rails, 24V and 12V. A fused 12V auxiliary output is available to supply ancillary equipment.

In addition the remote keypad feature enables control and indication where it is needed in the neatest possible way.

[Back to Top]

Technical Specifications

Power Supply Unit

Value

Unit

Comments

Mains Supply Voltage

230 +10% -6%

volts AC



Mains Supply Frequency

50 / 60

Hz



Mains Power Rating

60

VA



Nominal Battery Voltage

24

volts



Regulated PSU charger voltage

27.3

volts



Regulated PSU charger current

  • 20 minute rating
    continuous



2.5
2.0



A
A



Fused Outputs:

F1 Ext. Remote Bus
F2 Aux 12v
F3 Fault Output
F4 Sounder 1 Circuit
F5 Sounder 2 Circuit
F6 Battery +ve
F7 Battery +ve
F8 30VAC Transformer Secondary



1.0
1.0
1.0
1.0
1.0
1.0
3.0
3.0



A
A
A
A
A
A
A
A



F1A 20mm Quick Blow
F1A 20mm Quick Blow
F1A 20mm Quick Blow
F1A 20mm Quick Blow
F1A 20mm Quick Blow
T3A 20mm Slow Blow
T3A 20mm Slow Blow
T3A 20mm Slow Blow

Standby Battery Current:

Noby-208 8 zone main panel

Noby-208 Remote



70

25



mA

mA



8 zone + 2 sndr EOL resistors fitted
all LED’s off

Low Voltage Monitor

21.0

volts



Battery Capacity Monitor

Yes



10s load test every 12hrs

Zone Circuits

Value

Unit

Comments

Detection Zones

8





No. Detectors Per Zone

20



based on 100uA per detector

End Of Line (EOL) Resistor

4700

ohms



Open Circuit Monitoring

R > 10,000

ohms



Short Circuit Monitoring

R < 100

ohms



Fire Alarm Detection

100 < R< 1600

ohms



Sounder Circuits

Value

Unit

Comments

Sounder Circuits

2





Maximum No. Sounders Per Circuit

50



based on 20mA per sounder

Max No. Sounders – All Circuits

62



based on 20mA each

End Of Line (EOL) Resistor

4700

ohms



Open Circuit Monitoring

> 10,000

ohms



Short Circuit Monitoring

< 100

ohms



Fire Alarm DPDT Relay

1.0

A

rated at 1.0A/30Vdc per contact set

Communication Port (JP1)

Value

Unit

Comments

Zonal Outputs (JP1 pins 1 – 8)

10

mA

12 volt +ve going signal

Signal Output

Value

Unit

Comments

Fault Output (“Flt”)

200

kohm

12 volt +ve going signal (max 30v)

Cabinet

Value

Unit

Comments

Dimensions (width x height x depth):

  • Main Panel
  • Noby-208R Remote



315x435x120
230x192x38



mm
mm



1.2mm powder coated steel
1.2mm powder coated steel

Shipping Weight:

  • Main Panel
  • Noby-208R Remote



6.5
2.3



kg
kg
