Noby 448
ISO9001:2008 Approved by Afnor UK

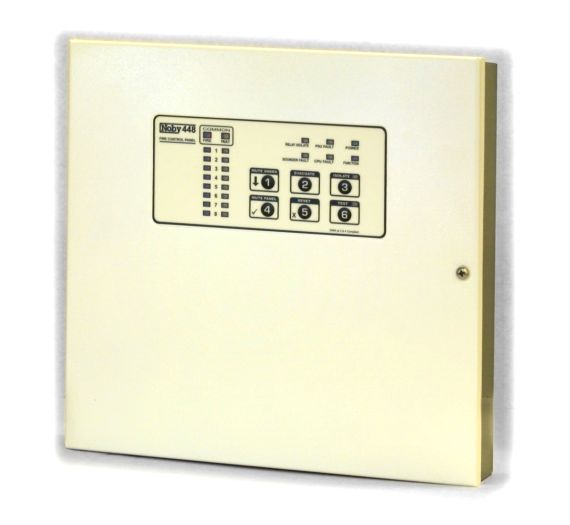

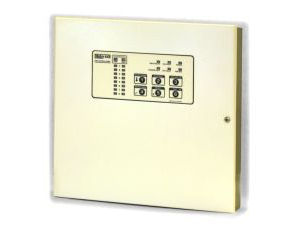

Noby-448 Closed (Click to enlarge)
Noby-448XT 4-Zone Extender (Click to enlarge)

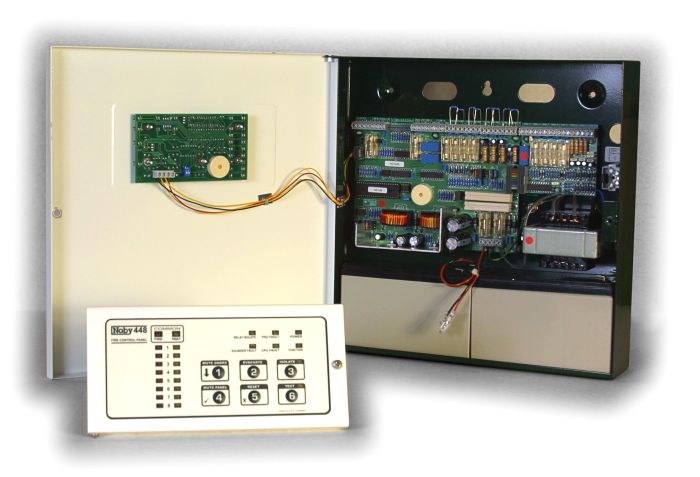

Noby-448 Group (Click to enlarge)
Noby-448RKP Remote (Click to enlarge)

Overview

    Features

  • EN54 Pt 2 & 4 compliant
  • 4 monitored zone circuits, extendable to 8
  • 4 monitored sounder circuits, extendable to 8
  • head removal monitoring as standard
  • up to 3 remote keypads
  • class change
  • non-latch zone option
  • zone isolate
  • relay isolate
  • one-man test
  • 8 event log memory
  • 2A PSU
  • battery monitoring
  • fault signal input & output
  • attractive steel cabinet
  • reliable build quality
  • 2 year warranty

PLEASE NOTE THAT THIS PRODUCT HAS BEEN DISCONTINUED.

The Noby-448 range has many features that allow for an easier, yet more professional installation.

The main control unit comes in an attractive metal cabinet with ample entries and connection space together with room for two 12 Volt DC 7 Ampere-hour sealed lead-acid batteries.

Wiring is simplified by the provision of a sounder circuit for every zone. While features such as built in head removal monitoring, optional non latch zones, class change input, zonal fire outputs and 12V and 24V auxiliary supplies make the system ideal for most installations.

Engineers have access to an 8 event fire memory which provides information on the most recent fire events. Engineers are further assisted by individual sounder circuit fault identification and sounder circuit isolation.

In addition the remote keypad feature enables control and indication where it is needed in the neatest possible way.

For full product information and manuals (pdf format) on the Noby-448 range, please go to our downloads section.

[Back to Top]

Technical Specifications

Power Supply Unit

Value

Unit

Comments

Mains Supply Voltage

230 +10% -6%

volts AC



Mains Supply Frequency

50 / 60

Hz



Mains Power Rating

60

VA



Nominal Battery Voltage

24

volts



Regulated PSU charger voltage

27.3

volts



Regulated PSU charger current

  • 20 minute rating
    continuous



2.5
2.0



A
A



Fused Outputs:

F1 Ext. Remote Bus & Aux 12v
F2 Aux 24v
F3 Sounder 1 Circuit
F4  Sounder 2 Circuit
F5  Sounder 3 Circuit
F6  Sounder 4 Circuit
F7 Battery +ve
F8 30VAC Transformer Secondary



1.0
1.0
1.0
1.0
1.0
1.0
3.0
3.0



A
A
A
A
A
A
A
A



F1A 20mm Quick Blow
F1A 20mm Quick Blow
F1A 20mm Quick Blow
F1A 20mm Quick Blow
F1A 20mm Quick Blow
F1A 20mm Quick Blow
T3A 20mm Slow Blow
T3A 20mm Slow Blow

Standby Battery Current:

Noby-448 4 zone main panel

Noby-448 4+4 (Noby-448XT fitted)

RKP Remote



70

105

25



mA

mA

mA



4 zone + 4 sndr EOL resistors fitted
8 zone + 8 sndr EOL resistors fitted
all LED’s off

Low Voltage Monitor

21.0

volts



Battery Capacity Monitor

Yes



10s load test every 12hrs

Zone Circuits

Value

Unit

Comments

Detection Zones:

  • Noby-448
  • Noby-448 + Noby-448XT module



4
8





No. Detectors Per Zone

20



based on 100uA per detector

End Of Line (EOL) Resistor

4700

ohms



Open Circuit Monitoring

R > 10,000

ohms



Short Circuit Monitoring

R < 100

ohms



Fire Alarm Detection

100 < R< 1600

ohms



Head Removal Monitoring

Yes



  • requires schottky diode bases
  • sampled at 60s intervals

Sounder Circuits

Value

Unit

Comments

Sounder Circuits:

  • Noby-448
  • Noby-448 + Noby-448XT module



4
8





Maximum No. Sounders Per Circuit

50



based on 20mA per sounder

Max No. Sounders – All Circuits:

  • Noby-448
  • Noby-448 + Noby-448XT module



62
124





based on 20mA each
based on 20mA each

End Of Line (EOL) Resistor

4700

ohms



Open Circuit Monitoring

> 10,000

ohms



Short Circuit Monitoring

< 100

ohms



Fire Alarm DPDT Relay

1.0

A

rated at 1.0A/30Vdc per contact set

Communication Port (JP1)

Value

Unit

Comments

Zonal Outputs (JP1 pins 1 – 8)

10

mA

12 volt +ve going signal

Fault Output (JP1 pin 9)

50

mA

12 volt open collector, +ve going

Signal Inputs

Value

Unit

Comments

Class Change (Bell Ring “BR”)

200

kohm

12 volt +ve going signal (max 30v)

Fault Input (“Flt”)

200

kohm

12 volt +ve going signal (max 30v)

Cabinet

Value

Unit

Comments

Dimensions (width x height x depth):

  • Main Panel
  • Noby-448RKP Remote Keypad



335 x 325 x 75
220 x 110 x 55



mm
mm



1.2mm powder coated steel
1.2mm powder coated steel

Shipping Weight:

  • Main Panel
  • Noby-448RKP Remote Keypad



4.7
875



kg
g
