Noby 220
ISO9001:2008 Approved by Afnor UK
Noby-220

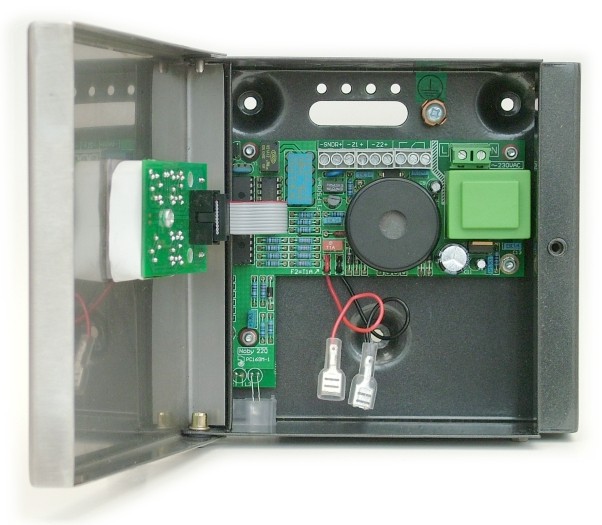

Noby-220 Internal (Click to enlarge)

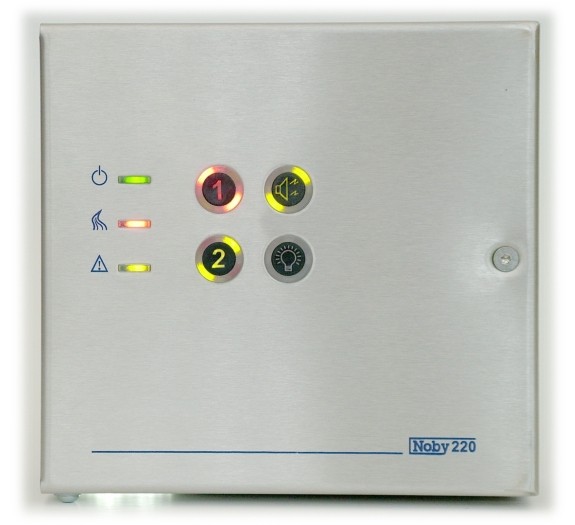

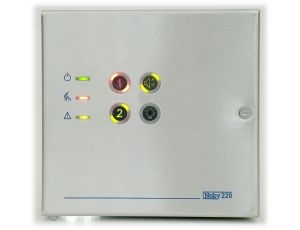

Noby-220 Front (Click to enlarge)

    Features

  • 2 monitored zone circuits
  • 1 monitored sounder circuits
  • innovative small size
  • head removal monitoring
  • zone isolate
  • relay isolate
  • one-man walk test
  • battery monitoring
  • fire alarm relay
  • internal 85dB piezo sounder
  • brushed stainless steel facia
  • reliable build quality
  • 2 year warranty

PLEASE NOTE THAT THIS PRODUCT HAS BEEN DISCONTINUED.

Overview

The Noby-220 is a compact two zone conventional fire alarm control panel offering a viable solution for mains-powered fire detection in the home or small business.  Finished in a modern and attractive stainless steel facia and measuring just 6 inches square, the Noby-220 will sit comfortably in any public space.  Pushbutton operation is both intuitive and user friendly.  End-user functions such as  one-touch muting and self-timed zone disablement make the Noby-220 an easy fire panel to live with, whilst a simple code sequence gives access to the more safety critical functions.

Despite its small size the Noby-220 incorporates all the salient features normally attributed to its larger EN54 counterparts.  In addition to comprehensive fault monitoring the Noby-220 also houses its own on-board 85dB sounder, and an integral LED fire alarm strobe that can also serve as a courtesy light or night light.

With the installer in mind, the Noby-220 has three standard 20mm knock-outs in addition to two smaller cord-grip knock-outs (top and bottom).  A handful of programmable options and a one-man walk test facility combine to make the Noby-220 the panel of choice for smaller installations.

For full product information and manuals (PDF format) on the Noby-220, please go to our downloads section.

[Back to Top]

Technical Specifications

PSU & Battery

Value

Unit

Comments

Mains supply voltage

230 +10% -6%

volts AC



Mains supply frequency

50 / 60

Hz



Mains power rating

3

VA



Nominal battery voltage

12

volts

SLA 1.3Ahr

Final battery voltage

10.5

volts



Regulated PSU charger voltage

13.6

volts



Fused Outputs:
F1 Sounder Circuit
F2 Battery +ve


500
1.0


mA
A


F500mA Radial Quick Blow
T1A Radial Slow Blow

Standby battery current:

7.5

mA

EOL devices fitted

Battery standby time

120

hrs

typ. assuming healthy battery

Low Voltage Monitor

10.5

volts



Battery Capacity Monitor

Yes



10s load test every 12hrs

Zone Circuits

Value

Unit

Comments

No. of detection zones

2





No. of detectors per zone

10



maximum total current 1mA

End Of Line (EOL) capacitor

10

uF

electrolytic non-polarised

Open circuit monitoring

Yes





Short circuit monitoring

R < 120

ohms



Fire alarm detection

120 < R< 1500

ohms



Head removal monitoring

Yes



requires schottky diode base

Sounder Circuits

Value

Unit

Comments

No. of sounder circuits

1





Maximum no. of sounders

10



based on 20mA per sounder

External current max.

200

mA



End Of Line (EOL) resistor

10000

ohms



Open circuit monitoring

> 20000

ohms



Short circuit monitoring

< 5000

ohms



Fire alarm SPDT relay

1.0

A

rated at 1.0A/30Vdc

Cabinet

Value

Unit

Comments

Dimensions (width x height x depth):

158 x 150 x 50

mm

brushed stainless steel facia
1.2mm powder coated steel

Shipping Weight

1150

g
