BJ1 Tilt Alarm
ISO9001:2008 Approved by EAQA

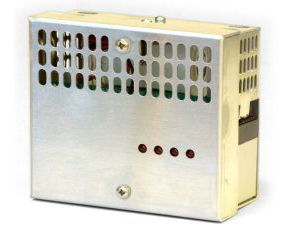

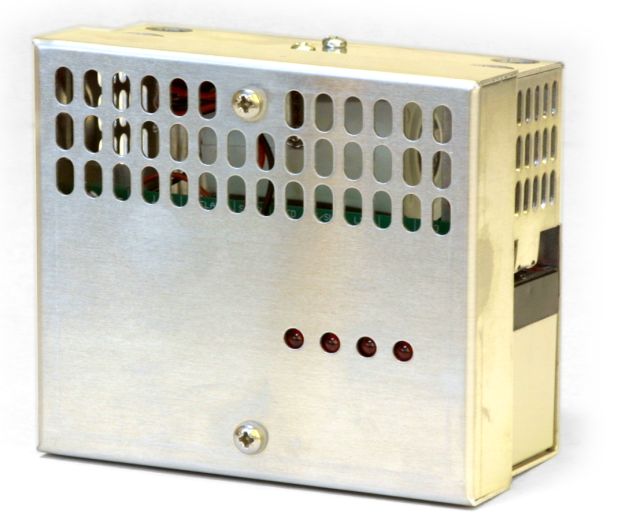

BJ1 Tilt Alarm Closed (Click to enlarge)

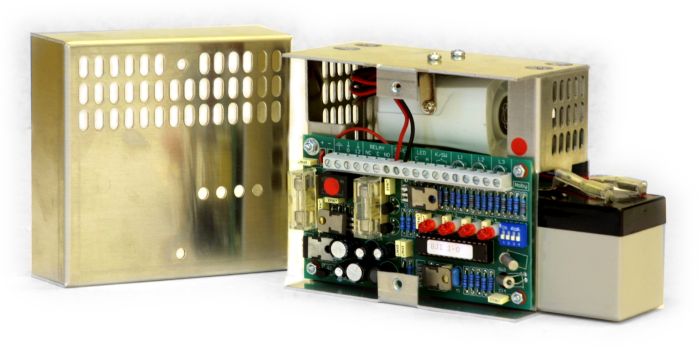

BJ1 Tilt Alarm Open (Click to enlarge)

Overview

    Features

  • tilt sensing in all three planes.
  • three alarm loops.
  • single pole changeover relay.
  • keyswitch control.
  • remote LED indicator.
  • built-in siren 105dB at 1 metre.
  • 12 Volts DC power supply.
  • up to 150 hours standby operation.

PLEASE NOTE THAT THIS PRODUCT HAS BEEN DISCONTINUED.

The BJ1 Tilt Alarm is an innovative alarm product that provides three alarm loops but also features tilt sensing on all three planes, alerting the user to movement of the protected object.

It is suitable for a variety of applications, including simple intruder alarm installations, caravans, boats and gaming machines.

Keyswitch operated with selectable exit / entry delay, the BJ1 Tilt Alarm offers further settings for Siren Time and Siren Delay.

The BJ1 Tilt Alarm can additionally be controlled by the Nobycode NC-02 keypad for secure code entry installations.

Normally connected to a 12 Volts DC supply, in the event of supply failure the BJ1 Tilt Alarm offers up to 150 hours of standby operation when fitted with one 12 Volt DC 1.2 Ampere-hour sealed lead acid battery.

[Back to Top]

Technical Specifications

Power Supply Unit

Value

Unit

Comments

Supply Voltage

12

volts DC



Nominal Battery Voltage

12

volts



Regulated PSU charger voltage

13.6

volts



Regulated PSU charger current

  • 20 minute rating
    continuous



1.5
1.0



A
A



Fused Outputs:

F1 Battery +ve
F2 Siren +ve



1.0
1.0



A
A



T1A 20mm Slow Blow
T1A 20mm Slow Blow

Standby Battery Current

7.5

mA



Cabinet

Value

Unit

Comments

Dimensions (width x height x depth)

125 x 115 x 80

mm

1.2mm aluminium

Shipping Weight

625

g
