Noby 110
ISO9001:2008 Approved by EAQA

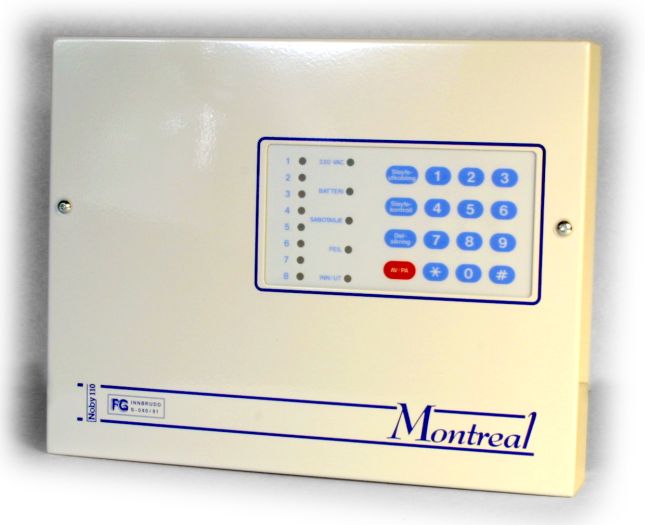

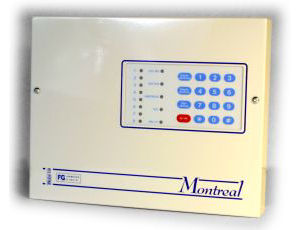

Noby-110 Montreal Closed (Click to enlarge)

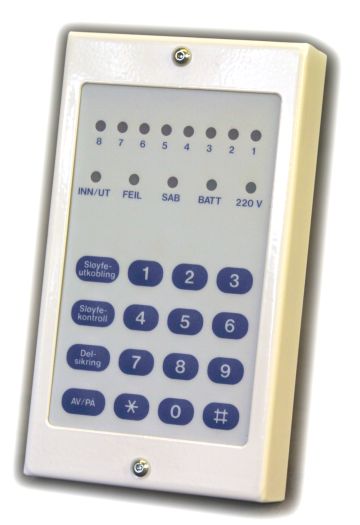

Noby-115 (Click to enlarge)

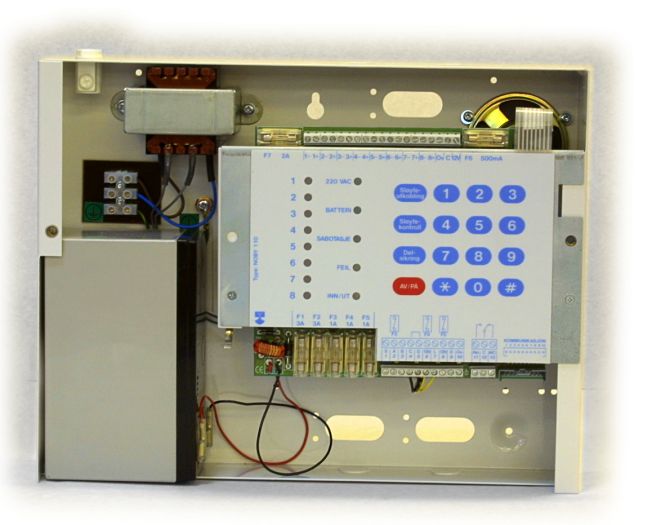

Noby-110 Montreal Open (Click to enlarge)

Overview

    Features

  • 8 monitored zone circuits, fully programmable
  • Noby-115 Remote keypad option
  • up to 9 different user codes with master code
  • part set suites, night set suites and multi set suites
  • non-latch zone option
  • zone isolate
  • 32 event log memory
  • 1A PSU
  • battery monitoring
  • Nemko approved
  • attractive steel cabinet
  • reliable build quality

PLEASE NOTE THAT THIS PRODUCT HAS BEEN DISCONTINUED.

The Noby-110 intruder alarm control panel offers a sophisticated solution for your security needs.

With a variety of features to satisfy the most demanding of commercial requirements it combines ease of use and installation with flexibility and reliability.

Where needed, the Noby-115 Remote Keypad offers full control and indication in a discrete and attractive package.

An integrated communication port allows a two output options: Zonal mode - indicating current zone alarm status; Global mode - overall panel status, including mains and battery status, tamper alarm, intruder alarm etc.

This port can be used, for example, to drive a Noby-28 Relay-8 Module for your switching requirements or a Noby-90 Communicator to provide remote notification of alarms.

In addition, the steel cabinet is capable of housing one 12 Volt 7 Ampere-hour sealed lead-acid battery to help provide sufficient battery capacity to meet the relevant standards regarding battery standby by times.

[Back to Top]

Technical Specifications

Power Supply Unit

Value

Unit

Comments

Mains Supply Voltage

230 +10% -6%

volts AC



Mains Supply Frequency

50 / 60

Hz



Mains Power Rating

30

VA



Nominal Battery Voltage

12

volts



Regulated PSU charger voltage

13.6

volts



Regulated PSU charger current

  • 20 minute rating
    continuous



1.5
1.0



A
A



Fused Outputs:

F1 Battery +ve
F2 Battery -’ve
F3 Bell Circuit
F4 Loudspeaker Circuit
F5 Remote Bus
F6 Aux 12V
F7 30VAC Transformer Secondary



2.0
2.0
1.0
0.5
1.0
0.5
2.0



A
A
A
A
A
A
A



T2A 20mm Slow Blow
T2A 20mm Slow Blow
F1A 20mm Quick Blow
F500mA 20mm Quick Blow
F1A 20mm Quick Blow
F500mA 20mm Quick Blow
T2A 20mm Slow Blow

Standby Battery Current:

Noby-110 8-zone main panel



70



mA



8 zone EOL

Low Voltage Monitor

8.0

volts



Battery Capacity Monitor

Yes



10s load test every 12hrs

Cabinet

Value

Unit

Comments

Dimensions (width x height x depth):

  • Noby-110
  • Noby-115 Remote Keypad



340 x 268 x 78
110 x 193 x 40



mm
mm



1.2mm powder coated steel
1.2mm powder coated steel

Shipping Weight:

  • Noby-110
  • Noby-115 Remote Keypad



4.2
1.2



kg
kg
