Noby 65
ISO9001:2008 Approved by EAQA

Overview

    Features

  • two zone intruder alarm.
  • water alarm loop.
  • 24V Fire alarm loop.
  • tamper
  • Part Set and Full Set suites.
  • 1A PSU
  • secure keyswitch operation.
  • battery monitoring
  • Nemko approved
  • attractive steel cabinet
  • reliable build quality

PLEASE NOTE THAT THIS PRODUCT HAS BEEN DISCONTINUED.

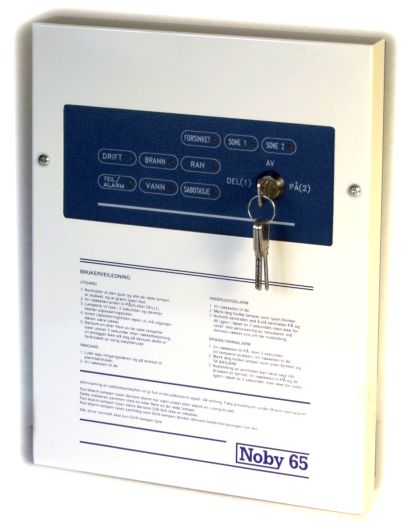

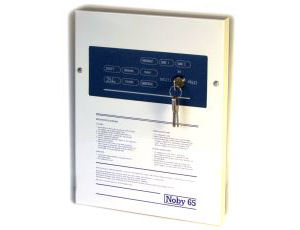

The Noby-65 is versatile intruder alarm control panel suitable for domestic and small commercial installations.

It features as standard two alarm zones together with dedicated loops for Water Sensors and 24V Smoke Detectors, with separate siren outputs available for Fire and Intruder alarms.

The Noby-65 can also be connected to a suitable control keypad, such as the Nobycode NC-02, to allow remote operation and setting via user code entry.

In addition, the steel cabinet is capable of housing one 12 Volt 7 Ampere-hour sealed lead-acid battery to help provide sufficient battery capacity to meet the relevant standards regarding battery standby by times.

[Back to Top]

Technical Specifications

Power Supply Unit

Value

Unit

Comments

Mains Supply Voltage

230 +10% -6%

volts AC



Mains Supply Frequency

50 / 60

Hz



Mains Power Rating

30

VA



Nominal Battery Voltage

12

volts



Regulated PSU charger voltage

13.6

volts



Regulated PSU charger current

  • 20 minute rating
    continuous



1.5
1.0



A
A



Fused Outputs:

F1 20VAC Transformer Secondary
F2 Aux 12v
F3 Battery +ve
F4 Relay Output
F5 Fire Output
F6 Water Output
F7 Battery +ve



2.0
0.5
3.0
1.0
1.0
1.0
3.0



A
A
A
A
A
A
A



T2A 20mm Slow Blow
F500mA 20mm Quick Blow
T3A 20mm Slow Blow
F1A 20mm Quick Blow
F1A 20mm Quick Blow
F1A 20mm Quick Blow
T3A 20mm Slow Blow

Standby Battery Current:

Noby-65 main panel



70



mA



6 zone

Low Voltage Monitor

8.0

volts



Battery Capacity Monitor

Yes



10s load test every 12hrs

Cabinet

Value

Unit

Comments

Dimensions (width x height x depth)

274 x 360 x 84

mm

1.2mm powder coated steel

Shipping Weight

4.2

kg
