Noby 70
ISO9001:2008 Approved by EAQA

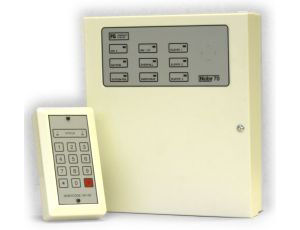

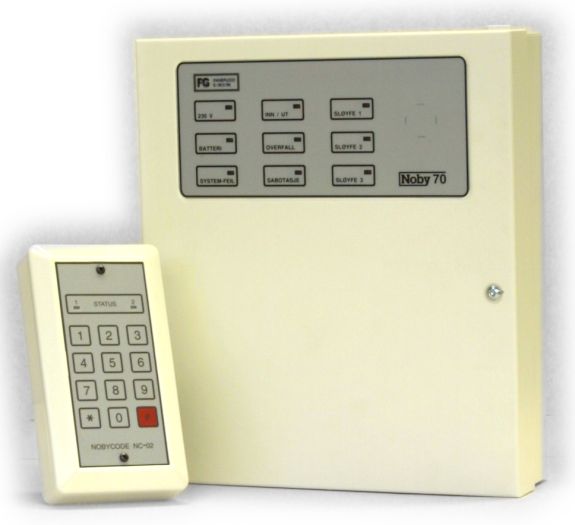

Noby-70 with Nobycode NC-02 (Click to enlarge)

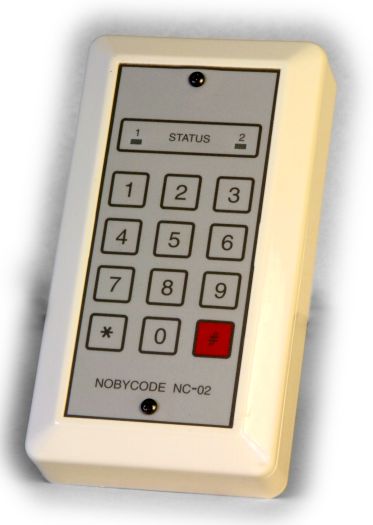

Nobycode NC-02 (Click to enlarge)

Overview

    Features

  • 3 monitored zone circuits
  • 1 monitored exit/entry zone circuit.
  • 1 monitored 24 hour zone circuit.
  • remote keypad
  • non-latch zone option
  • zone isolate
  • 1A PSU
  • battery monitoring
  • fault signal output
  • Nemko approved
  • attractive steel cabinet
  • reliable build quality

PLEASE NOTE THAT THIS PRODUCT HAS BEEN DISCONTINUED.

The Noby-70 is an intruder alarm control panel suitable for domestic and small commercial installations.

It features three alarm zones together with a tamper alarm.

The Noby-70 can be connected to a suitable control keypad, such as the Nobycode NC-02, to allow remote operation and setting via user code entry, or alternatively can be fitted with a keyswitch.

The Noby-70 offers the option to have two distinct suites that can be controlled and set independently thus allowing the first area to be fully armed and set on exit whilst providing no restriction to movement in the second area.

In addition, the steel cabinet is capable of housing one 12 Volt 7 Ampere-hour sealed lead-acid battery to help provide sufficient battery capacity to meet the relevant standards regarding battery standby by times.

[Back to Top]

Technical Specifications

Power Supply Unit

Value

Unit

Comments

Mains Supply Voltage

230 +10% -6%

volts AC



Mains Supply Frequency

50 / 60

Hz



Mains Power Rating

30

VA



Nominal Battery Voltage

12

volts



Regulated PSU charger voltage

13.6

volts



Regulated PSU charger current

  • 20 minute rating
    continuous



1.5
1.0



A
A



Fused Outputs:

F1 Ext. Remote Bus & Aux 12v
F2 Aux 24v
F3 Sounder 1 Circuit
F4  Sounder 2 Circuit
F5  Sounder 3 Circuit
F6  Sounder 4 Circuit
F7 Battery +ve
F8 30VAC Transformer Secondary



1.0
1.0
1.0
1.0
1.0
1.0
3.0
3.0



A
A
A
A
A
A
A
A



F1A 20mm Quick Blow
F1A 20mm Quick Blow
F1A 20mm Quick Blow
F1A 20mm Quick Blow
F1A 20mm Quick Blow
F1A 20mm Quick Blow
T3A 20mm Slow Blow
T3A 20mm Slow Blow

Standby Battery Current:

Noby-70 zone main panel

Nobycode NC-02



70

60



mA

mA



8 zone EOL resistors fitted

all LED’s off

Low Voltage Monitor

8.0

volts



Battery Capacity Monitor

Yes



10s load test every 12hrs

Cabinet

Value

Unit

Comments

Dimensions (width x height x depth):

  • Noby-70
  • Nobycode NC-02



245 x 280 x 77
84 x 155 x 32



mm
mm



1.2mm powder coated steel
white abs plastic

Shipping Weight:

  • Noby-70
  • Nobycode NC-02



4.2
550



kg
g
