NC-02
ISO9001:2008 Approved by EAQA

Overview

    Features

  • up to 49 user codes
  • user codes 4 to 8 digits
  • two independent relays, rated at 30VDC/1A.
  • timed or latched operation
  • security tamper
  • 12 Volts DC supply.

PLEASE NOTE THAT THIS PRODUCT HAS BEEN DISCONTINUED.

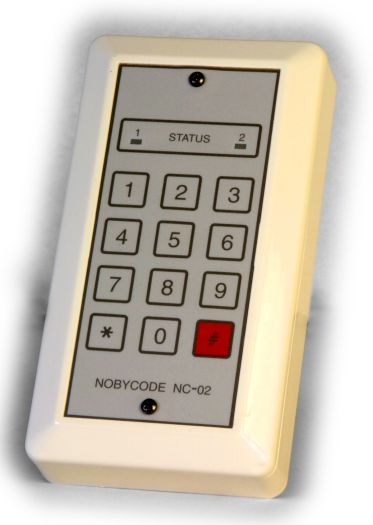

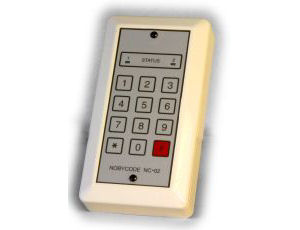

The Nobycode NC-02 is a versatile code entry keypad, with 50 programmable codes.

The NC-02 is fully programmable and administered by the master key holder, and can be used in a variety of applications, including

  • as a substitute method of control for keyswitch operated intruder alarms
  • as a control for a doorlock entry system
  • for any switch application that requires secured user operation.

Two outputs can be used to offer external LED indication of operating status and a switch output can be connected to a host intruder alarm control panel to trigger an alert in case of tamper.

[Back to Top]

Technical Specifications

Power Supply Unit

Value

Unit

Comments

Supply Voltage

12

volts DC

typically 10-16V

Connections

Value

Unit

Comments

No. of relays

No. of contacts per relay

Contact rating

2

1

3





amps





at 30 volts DC

LED Outputs

2



to LED anode

Cabinet

Value

Unit

Comments

Dimensions (width x height x depth)

84 x 155 x 32

mm

white abs plastic

Shipping Weight

550

g
